COMBO DUMP SERIES

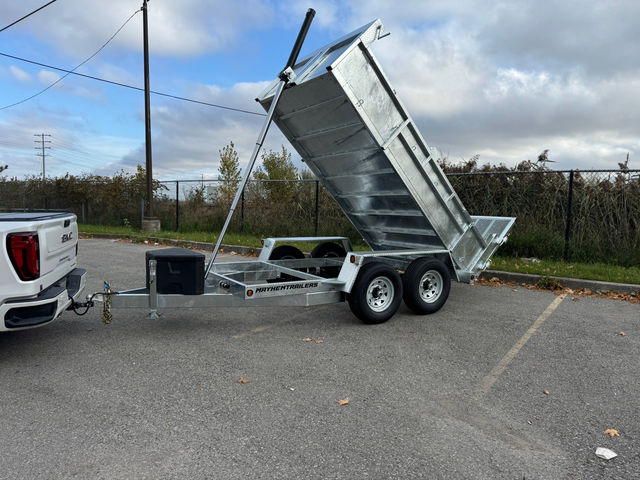

Box Size: 72" x 10'

Axles: Tandem Drop 3500 lb. (1590 kg.)

Brakes: Electric, one axle, (2nd optional)

Suspension: Double Eye, leaf spring

GVWR: 3150 kg. (7000 lb.)

Tires: 14" LRC, 5 Bolt

Tarp Kit: Standard

Sides: 16" + plank (plank not supplied)

Floor: 1/8" Steel Plate

Doors: 4' Ramp Doors (Combo)

Tie Downs: 4, D-Rings (5000 lb. ea.)

Lighting: Standard Surface Mounted

Coupler: 2 5/16" A-Frame

Jack: 2000 lb.

Cylinder: 3 Stage, 7 Ton, 108" lift

Remote Cont.: Detachable, Push Button

Charge Line: Standard, 12V

Curb Weight: 1040 kg.

Box Size: 76" x 12'

Axles: Tandem Drop 7000 lb. (6360 kg.)

Brakes: Electric, 4 wheels

Suspension: Heavy Duty Slipper, leaf spring

GVWR: 6360 kg. (14000 lb.)

Tires: 16" , 8 Bolt

Tarp Kit: Standard

Sides: 20" + plank (plank not supplied)

Floor: 1/8" Steel Plate

Doors: 4' Ramp Doors (Combo)

Tie Downs: 4, D-Rings (5000 lb. ea.)

Lighting: Rubber Mounted Sealed Beam

Coupler: Adjustable, Pintle Eye OR 2 5/16"

Jack: 7000 lb. Drop Leg

Cylinder: 3 Stage, 7 Ton, 108" lift

Remote Cont.: Detachable, Push Button

Charge Line: Standard, 12V

Curb Weight: 1450 kg.
